Wi-Fi 6E 3.3V 802.11ax RF Front-end Module


Wi-Fi 6E 3.3V 802.11ax RF Front-end Module

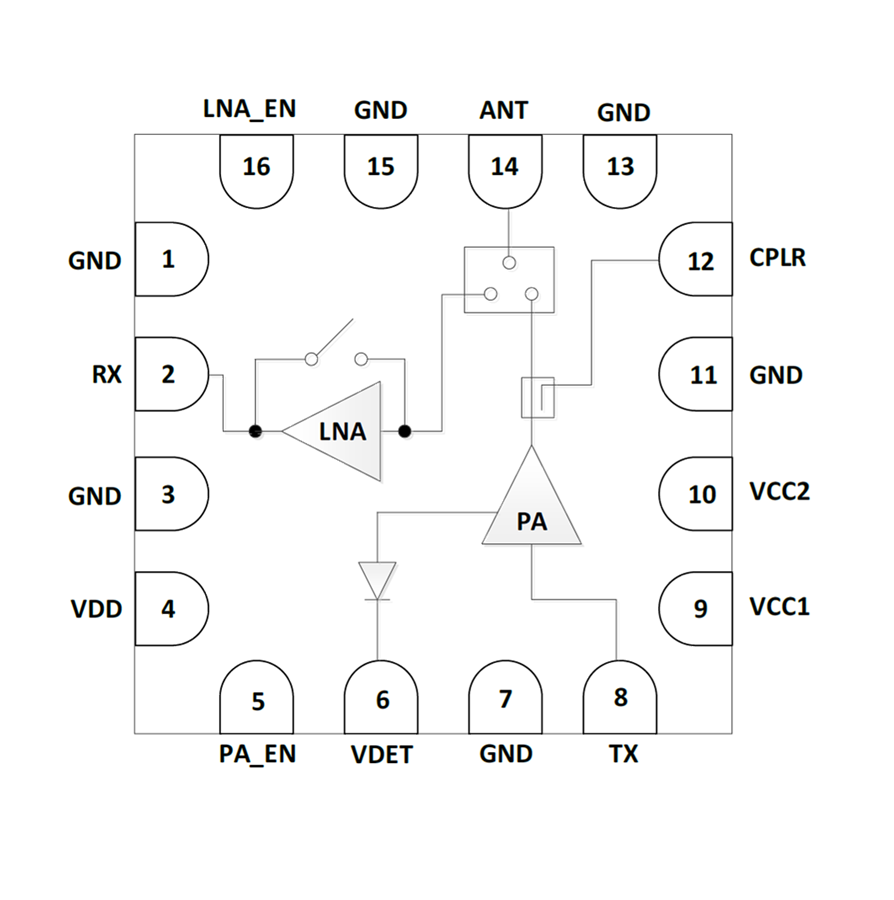

KCT8771HE is a highly integrated RF Front-End Integrated Circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac/ax WLAN systems operating in the 5.925 -7.125GHz range. KCT8771HE integrates a high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network and harmonic filters all in one device.

KCT8771HE is a 3.3V supply voltage power amplifier that conserves power consumption while maintaining the highest linear output power and excellent throughput. A DC voltage output power detector and a digital enable control are also integrated. A coupler function is integrated to further improve the linearity of the FEM.

KCT8771HE is assembled in a compact, low-profile 3 x 3 x0.75mm 16-lead QFN package. KCT8771HE is the ideal RF front-end solution for implementing WIFI 6E high-power WLAN systems supporting multiple standards including 802.11a/n/ac/ax.


Integrated high performance WIFI 6E PA, LNA with bypass and T/R switch

Fully-matched input and output

Nominal supply voltage: 3.3V

Integrated power detector

Transmit gain: 29dB

Output power: +14dBm @ -43dB DEVM, HE160/MCS11

                     +16.5dBm @ -40dB DEVM, VHT80/MCS9

                     +18.5dBm @-35dB DEVM, VHT80/MCS9

                     +19.5dBm @ -30dB DEVM, HT40/MCS7

Receive gain: 13.6dB

Noise figure: 2.0dB

ESD protection circuitry on all PINs

Simplified external components required

Small package: QFN-16L 3mm x 3mm x0.75mm

MSL3, 260°C per JEDEC J-STD-020

RoHS and REACH Compliant
