Wi-Fi 6E 3.3V 802.11ax RF Front-end Module

KCT8773HE

Wi-Fi 6E 3.3V 802.11ax RF Front-end Module

Introduction

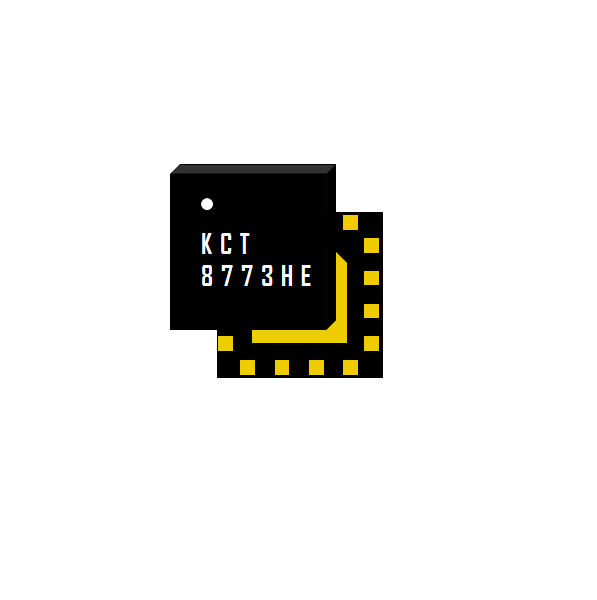

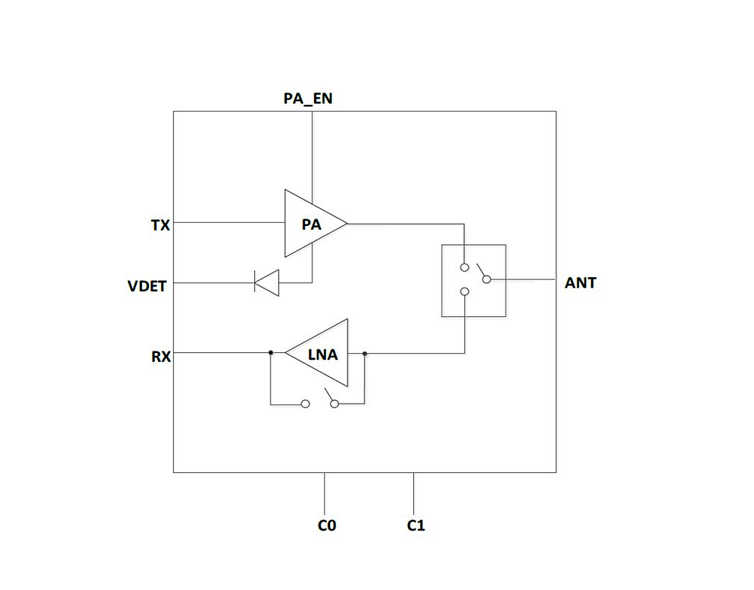

KCT8773HE is a highly integrated RF Front-End Integrated Circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac/ax WLAN systems operating in the 5.9 - 7.1GHz range. KCT8773HE integrates a high-efficiency high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated

matching network and harmonic filters all in one device.

KCT8773HE has simple and low-voltage control logic, and requires simplified external components. A DC voltage output power detector and a directional RF coupler are integrated for further improve the linearity of the PA.

KCT8773HE is assembled in a compact, low-profile 3x3x0.55mm 16-lead MIS package. It is the ideal RF front-end solution for implementing WIFI 6E highpower WLAN systems supporting multiple standards including 802.11a/n/ac/ax.


Specifications

Integrated high performance WIFI 6E PA, LNA with bypass and T/R switch

Fully-matched input and output

Nominal operating voltage at 3.8V

Integrated power detector

Transmit gain: 30dB

Output power:

+15dBm @ -43dB DEVM, HE160/MCS11

+17dBm @ -40dB DEVM, HE160/MCS11

+19.5dBm @ -35dB DEVM, VHT80/MCS9

+20.5dBm @ -30dB DEVM, HT20/MCS7

Receive gain: 13.5dB

Noise Figure: 2.2dB

ESD protection circuitry on all PINs

Simplified external components required

Small package: MIS16-pin 3mm x 3mm x0.55mm (MSL3, 260 oC per JEDEC J-STD-020)

ROHS and REACH Compliant
