5G & 6GHz 802.11ax RF Front-End Module

KCT8871HE

5G & 6GHz 802.11ax RF Front-End Module

Introduction

KCT8871HE is a highly integrated RF Front-End Integrated Circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac/ax/be WLAN systems operating in the 5.1-7.2GHz range. KCT8871HE integrates a high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network and harmonic filters all in one device.



KCT8871HE is a 3.3V supply voltage power amplifier that conserves power consumption while maintaining the highest linear output power and excellent throughput. A DC voltage output power detector and a directional RF coupler are integrated to support closed-loop power control within the system.



KCT8871HE is assembled in a compact, low-profile 3x3x0.75mm 16-lead QFN package. KCT8871HE is the ideal RF front-end solution for implementing 5~7GHz ultra-wide band high-power WLAN systems supporting multiple standards including Wi-Fi 7.


Specifications

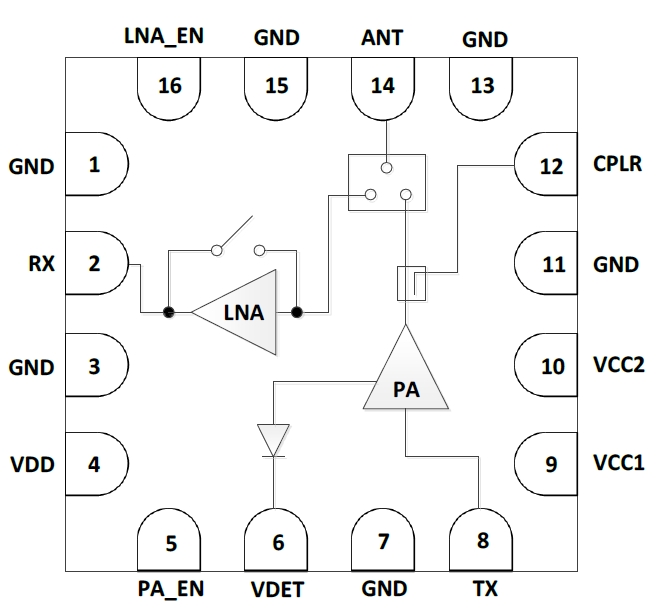

Integrated high-performance Wi-Fi 7 PA, LNA with bypass and T/R switch

Fully-matched input and output

Integrated RF & DC power detector

Transmit gain: 30.5dB at 3.3V

Receive gain: 13dB at 3.3V

Noise figure: 2.0dB at 3.3V

Output power:

+10.0dBm @ -43dB DEVM, EHT320/MCS13, 3.3V

+15.0dBm @ -40dB DEVM, HE160/MCS11, 3.3V

+18.0dBm @ -35dB DEVM, VHT80/MCS9, 3.3V

+19.0dBm @ -30dB DEVM, HT20/MCS7, 3.3V

ESD protection circuitry on all PINs

Minimal external components required

Small package: QFN-16L 3mm x 3mm x0.75mm (MSL3, 260℃ per JEDEC J-STD-020)

RoHS and REACH Compliant
