KCT8207L
[Introduction]

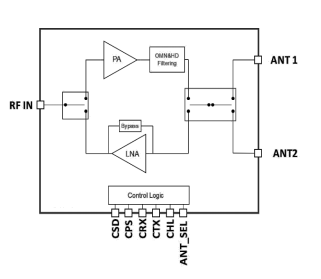

KCT8207L is a fully integrated RF FEM (Front-End Module) which designed for ZigBee, IoT, and IEEE 802.15.4 compliant applications. It integrates a high-efficiency PA, a low noise amplifier (LNA) with bypass mode, Transmit and Receive switching circuitry, the associated matching network, a harmonic filter and a diversity switch all in one device.
KCT8207L has a wide supply voltage range from 1.8V to 3.3V, and requires minimal external components.
KCT8207L is assembled in a compact, low-profile 2.5x2.5x0.62mm 20-pin LGA package. It’s the perfect RF Front-end solution for applications requiring extended range and bandwidth.
【Specifications】Integrated ET power amplifier (PA), LNA with bypass, and T/R switch and antenna switch
Support HPM/LPM mode with 1.8V/3.3V VCC
Logic control: GPIO
Transmit gain: 21dB at 3.3V and 18dB at 1.8V
Output power: 21dBm at 3.3V and 16dBm at 1.8V
Receive gain: 15dB at 3.3V
Noise figure: 2.0dB at 3.3V
ESD Protection Circuitry on All Ports
Small package: LGA-20L, 2.5mm ×2.5mm ×0.62mm (MSL3, 260 ℃ per JEDEC J-STD-020)
Minimal External Components Required
RoHS and REACH Compliant
