KCT8206L-1
【Introduction】

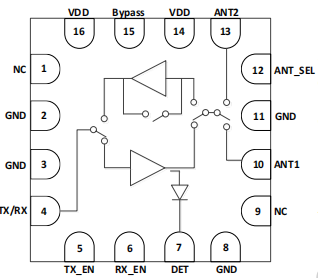

KCT8206L-1 is a fully integrated RFIC (RF Front-end Integrated Circuit) which incorporates key RF functionality. It integrates a high-efficiency PA, a low noise amplifier (LNA) with bypass mode, Transmit and Receive switching circuitry, the associated matching network, a harmonic filter and a diversity switch all in one device. The PA power detect circuit is also integrated.
KCT8206L-1 has simple and low-voltage control logic, and requires minimal external components. Moreover, KCT8206L-1 has ruggedized ESD, and VSWR protection.
KCT8206L-1 is designed for use in 2.4GHz ISM band and supports the 802.15.4 and ZigBee standard. It’s the perfect RF Front-end solution for applications requiring extended range and bandwidth.
【Specifications】2.4GHz ZigBee High Power, Fully Integrated RF Front-End IC with 22.5 dBm Output Power
Full On-chip 50Ω Input / Output Matching, Integrate Output Filter for Spurs / Harmonics Rejection
Integrated Power Detector for Transmit Power Monitor and Control
Dual Antenna for Range-extension
Very Low DC Power Consumption
Integrated Receive Bypass Function
ESD Protection Circuitry on All Ports
Small package: QFN-16L, 3mm ×3mm ×0.75mm (MSL3, 260 ℃ per JEDEC J-STD-020)
Minimal External Components Required
RoHS and REACH Compliant
