KCT7502AT
【Introduction】

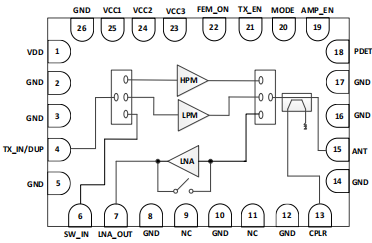

KCT7502AT is a highly integrated RF front-end integrated circuit incorporates key RF functionality needed for C-V2X and IEEE 802.11p DSRC applications and systems in the 5.770-5.925GHz range. KCT7502AT integrates a high-efficiency, high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, LO rejection, and harmonic filters all in one device.
KCT7502AT has simple and low-voltage control logic, and requires minimal external components. A power detector is also integrated for accuratemonitoring of output power from the PA. KCT7502AT is assembled in a compact, low-profile 5.0 x 4.0 x 0.845mm 26-lead LGA package.
【Specifications】
AEC-Q100 Grade 2
Integrated power detector
Transmit gain: 31.5dB at 5V
Output power: 29dBm,10MHz linear power
Receive gain: 13.5dB at 5V
Bypass LNA loss: 5.5dB at 5V
Noise Figure: 2.7dB at 5V
ESD protection circuitry on all PINs
Minimal external components required
Small package: LGA-26L, 5.0mm x 4.0mm x 0.845mm (MSL3, 260 ℃ per JEDEC J-STD-020)
RoHS and REACH compliant
