KCT6103L
【Introduction】
KCT6103L is a highly integrated RF Power Amplifier (PA) which incorporates key RF functionality needed for a TDD-mode operating in the 860M~930MHz ISM frequency bands. KCT6103L is designed for ease of use and maximum flexibility, could achieve high power and high linearity for latest IoT protocols.
KCT6103L has simple and low-voltage 1.6 to 3.6V control logic, and wide supply voltage range from 3.3 to 5.0V allowing the KCT6103L to be used in battery powered applications.

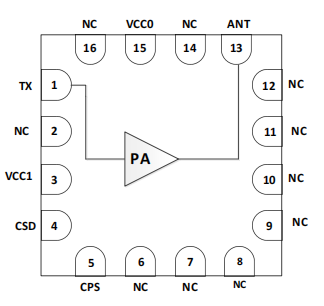

KCT6103L is assembled in a compact, low-profile 3x3x0.75mm 16-lead QFN package. KCT6103L is the ideal RF Power Amplifier for implementing sub-GHz from 860M~930MHz supporting multiple standards including LP-WAN (LoRa, Sigfox, etc.), IEEE 802.11ah, Wi-SUN, and other IoT applications.
【Specifications】
Integrated high-performance 860~930MHz RF PA
Fully-matched input and output
Nominated voltage at 3.3V&5V
+31.5dBm saturated output power at 5V
+28.5dBm saturated output power at 3.3V
Output power:
+23.5dBm @ -35dB DEVM, VHT20/MCS7, 5V
+24.5dBm @ -30dB DEVM, VHT20/MCS7, 5V
+25.5dBm @ -25dB DEVM, VHT20/MCS7, 5V
+27.0dBm @ -20dB DEVM, VHT20/MCS7, 5V
Output power:
+20.0dBm @ -35dB DEVM, VHT20/MCS7, 3.3V
+21.0dBm @ -30dB DEVM, VHT20/MCS7, 3.3V
+22.5dBm @ -25dB DEVM, VHT20/MCS7, 3.3V
+24.0dBm @ -20dB DEVM, VHT20/MCS7, 3.3V
ESD Protection Circuitry on All Ports
Small package: QFN-16L, 3mm x 3mm x 0.75mm (MSL3, 260°C per JEDEC J-STD-020)
RoHS and REACH Compliant
