KCT8239SD

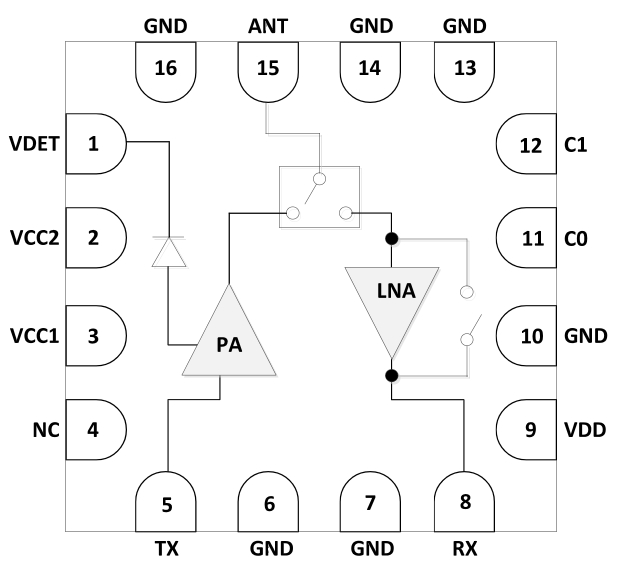

【Introduction】KCT8239SD is a fully integrated 802.11b/g/n/ac/ax WLAN RF Front-end module (FEM) which incorporates key RF functionality. It is integrated with a high efficiency power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network and a single-pole, double-throw (SPDT) switch all in one device.
KCT8239SD integrates a DC voltage output power detector, and a digital enable control for transmitter power ramp on/off control.
KCT8239SD is assembled in a compact, low-profile 3x3x0.75mm 16-pin QFN package. It is the perfect RF Front-end solution for implementing 2.4GHz high performance WLAN systems supporting multiple standards.
【Specifications】
Integrated high performance 2.4GHz PA, LNA with bypass, and T/R switch
Fully-matched input and output
Integrated Power Detector
Transmit gain: 30.0dB at 5V
Receive gain: 15.5dB at 5V
Noise figure: 2.5dB at 5V
Output power:
+20.5dBm @ -43dB DEVM, HE40/MCS11,5V
+21.5dBm @ -40dB DEVM, HE40/MCS11,5V
+23.5dBm @ -35dB DEVM, VHT40/MCS9,5V
+24.5dBm @ -30dB DEVM, HT20/MCS7,5V
ESD protection circuitry on all PINs
Minimal External Components Required
Small package: QFN-16L, 3mm ×3mm ×0.75mm (MSL3, 260 ℃ per JEDEC J-STD-020)
RoHS and REACH Compliant
