【Introduction】

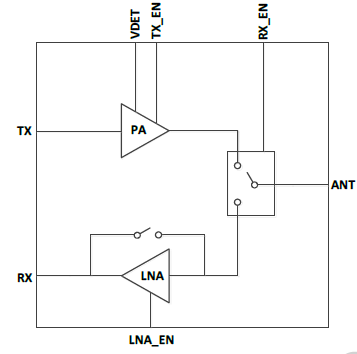

KCT8223H is a fully integrated 802.11b/g/n/ac WLAN RF Front-end module (FEM) which incorporates key RF functionality. It is integrated with a high-efficiency power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network and a single-pole, double-throw (SPDT) switch all in one device.

The PA power detector and a digital enable control are also integrated.

KCT8223H is assembled in a compact, low-profile 3*3*0.55mm 16-pin QFN package. It is the perfect RF Front-end solution for implementing 2.4GHz high performance WLAN systems supporting multiple standards.

【Specifications】

Integrated high performance 2.4GHz PA, LNA with bypass, and T/R switch

Fully-matched input and output

Integrated Power Detector

Output power: +23.5dBm @ DEVM=-35dB, VHT40/MCS9, 5V

Output power: +24.5dBm @ DEVM=-30dB, HT20/MCS7, 5V

Transmit gain: 30.5dB at 5V

Receive gain: 15.5dB at 5V

Noise figure: 1.5dB at 5V

ESD protection circuitry on all PINs

Minimal External Components Required

Small package: QFN-16L, 3×3×0.55mm (MSL3, 260 ℃ per JEDEC J-STD-020)

RoHS and REACH Compliant
