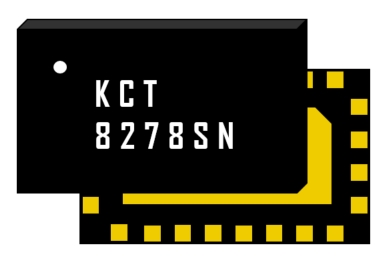

KCT8278SN
【Introduction】KCT8278SN is a fully integrated WLAN RF Front-End module (FEM) which incorporates key RF functionality. It is integrated with a high efficiency power amplifier (PA), a low noise amplifier (LNA) with bypass, a single-pole, double-throw (SPDT) transmit/receive (T/R) switch and the associated matching network all in one device.
KCT8278SN provides an excellent heat dissipation environment for 802.11be network equipment which have multiple RF paths configuration. It achieves ultra-low power consumption while providing a competitive EVM level when cooperates with the DPD algorithm. In addition, a DC voltage output power detector and a directional RF coupler are integrated to support closed-loop power control within the system.
KCT8278SN is assembled in a compact, low-profile 3×5×0.812mm 24-pin LGA package. It is the perfect RF Front-End solution for implementing 2.4GHz high performance WLAN systems supporting multiple standards.
【Specifications】
Integrated 802.11be 2.4GHz PA, LNA with bypass and T/R switch
Fully-matched input and output
Integrated RF & DC power detector
Transmit gain: 30.5dB at 5V
Receive gain:
16.5dB at high-gain mode, 5V
7.0dB at mid-gain mode, 5V
Noise Figure:
2.0dB at high-gain mode, 5V
2.5dB at mid-gain mode, 5V
Output power:
+21.5dBm @ -45dB DEVM with DPD, EHT40/MCS13, 5V
+22.5dBm @ -43dB DEVM with DPD, EHT40/MCS13, 5V
+23.5dBm @ -40dB DEVM with DPD, HE40/MCS11, 5V
+25.0dBm @ -35dB DEVM with DPD, VHT40/MCS9, 5V
+25.5dBm @ -30dB DEVM with DPD, HT20/MCS7, 5V
ESD protection circuitry on all PINs
Minimal External Components Required
Package: LGA-24L, 3mm × 5mm × 0.812mm (MSL3, 260℃ per JEDEC J-STD-020)
RoHS and REACH Compliant
