【Introduction】

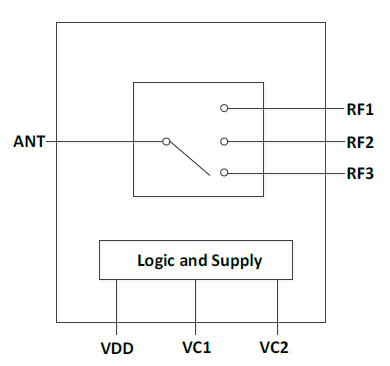

KCT2823L-1 is a single-pole, triple-throw (SP3T) switch, which is operating from 0.5GHz to 7.2GHz frequency range. The high linearity and ruggedness performance and extremely low insertion loss makes the device an ideal choice for WLAN and Bluetooth applications.

KCT2823L-1 features low insertion loss, high isolation and positive voltage operating with low power consumption. The KCT2823L-1 SP3T switch is provided in a compact 1.5x1.5x0.45mm 8-lead QFN package.

【Specifications】

Broadband frequency range: 0.5~7.2GHz

Low insertion: 0.95dB@6.0GHz

Input power of P0.1dB: 32dBm

Small Package: QFN-8L, 1.5mm x 1.5mm x 0.45mm (MSL1, 260℃ per JEDEC J-STD-020)
