【Introduction】

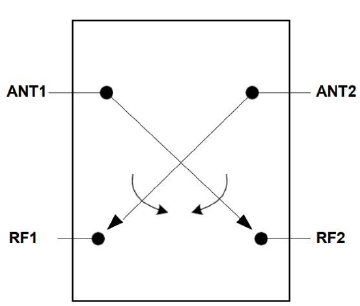

KCT2824L is a double-pole, double-throw (DPDT) switch, which is operating from 0.5GHz to 7.125GHz frequency range. The high linearity and ruggedness performance and extremely low insertion loss makes the device an ideal choice for WLAN applications.

KCT2824L features low insertion loss, high isolation and positive voltage operating with low power consumption. The KCT2824L DPDT switch is provided in a compact 1.5mm x 1.5mm x 0.45mm 6-lead DFN package.

【Specifications】

Broadband frequency range: 0.5-7.125GHz

Ultra-low switching time:120ns

Input 0.1dB compression point: 31dBm

Small, DFN (6-pin, 1.5mm x 1.5mm x 0.45mm) package, MSL1
