【Introduction】

The KCT2836L is a high-performance single-pole double-throw (SPDT) RF switch operating from 5 to 1794 MHz which is ideal for use in cable applications. With its high linearity and low insertion loss performance, it allows the switch to meet the requirements of DOCSIS 4.0 specifications for cable access networks, including cable modems, gateways, and set- top boxes.

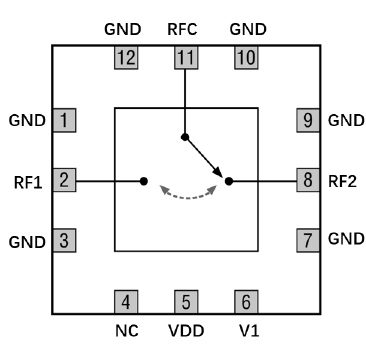

The KCT2836L is packaged in 12-lead surface mount package QFN 3.0mm x3.0mm x 0.75mm (max) with lead-free RoHS compliant.

【Specifications】

DOCSIS 4.0 standards compliance

Operating frequency range: 5 MHz to 1794 MHz

Wide Supply range: 2.3~5V

Excellent harmonics:

-110 dBc @ 900 MHz for 2nd harmonics

-135 dBc @ 900 MHz for 3rd harmonics

Low Insertion Loss: 0.18dB @ 1218MHz

High Isolation: 54dB @ 204MHz

12-lead QFN 3.0mm x 3.0mm x 0.75mm package

RoHS Compliant, Pb-free, Halogen Free

Moisture Sensitivity Level: MSL 3
