【Introduction】

The KCT2837L is a high performance single-pole double-throw (SPDT) RF switch operating from 5 to 6000 MHz which is ideal for use in filter-bank switching in test equipment and base stations, and other general purpose RF switching applications. With frequency coverage up to 6 GHz, high linearity, low insertion loss, and a small size, this device can meet requirements set by increased data rates and increasing complexity in RF designs.

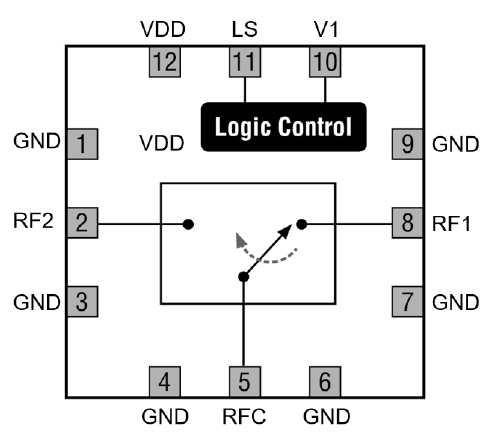

The KCT2837L is packaged in 12-lead surface mount package QFN 2.0mm x 2.0mm x 0.55mm with lead-free RoHS compliant.

【Specifications】

Operating frequency range: 5 MHz to 6000 MHz

Wide supply range: 2.3~4.2V

50Ω system with VDD= 3.3V

Low Insertion Loss:

0.24dB @ 100 MHz

0.28dB @ 1000 MHz

0.32dB @ 3000 MHz

0.41dB @ 5000 MHz

0.45dB @ 6000 MHz

75Ω system with VDD= 3.3V

Low Insertion Loss:

0.24dB @ 100 MHz

0.30dB @ 1000 MHz

0.50dB @ 3000 MHz

0.68dB @ 5000 MHz

0.80dB @ 6000 MHz

12-lead QFN 2.0mm x 2.0mm x 0.55mm package

RoHS Compliant, Pb-free, Halogen Free

Moisture Sensitivity Level: MSL 1
