KCT8229D-1
【Introduction】

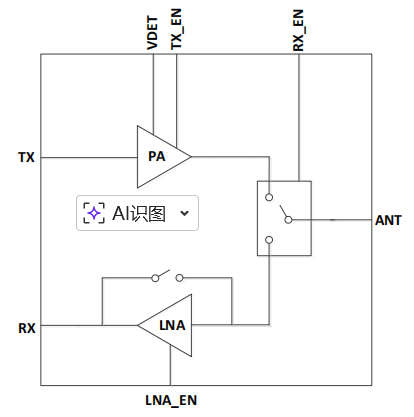

KCT8229D-1 is a fully integrated 802.11b/g/n/ac WLAN RF Front-end module (FEM) which incorporates key RF functionality. It is integrated with a high-efficiency power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network and Transmit / Receive (T/R) switch all in one device.
The PA power detector and a digital enable control are also integrated.
KCT8229D-1 is assembled in a compact, low-profile 2.5*2.5*0.78mm 16-pin LGA package. It is the perfect RF Front-end solution for implementing 2.4GHz high performance WLAN systems supporting multiple standards.
【Specifications】
Integrated high performance 2.4GHz PA, LNA with bypass, and T/R switch
Fully-matched input and output
Integrated Power Detector
Output power:
+22.5dBm @ DEVM=-35dB, VHT40/MCS9, 5V
+23.5dBm @ DEVM=-30dB, HT20/MCS7, 5V
Transmit gain: 28dB at 5V
Receive gain: 15dB at 5V
Noise Figure: 3.4dB at 5V
ESD protection circuitry on all PINs
Minimal External Components Required
Small package: LGA-16L, 2.5×2.5×0.78mm (MSL3, 260℃ per JEDEC J-STD-020)
RoHS and REACH compliant
