KCT8253C
【Introduction】

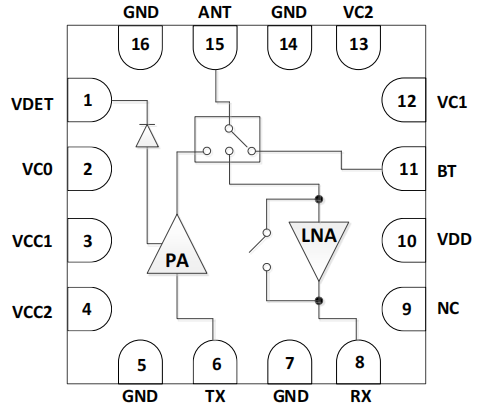

KCT8253C is a fully integrated 802.11b/g/n/ac WLAN RF Front-End module (FEM) which incorporates key RF functionality, it is integrated with a high-efficiency power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, and a T/R switch all in one device. The antenna port can be switched between Transmit mode, Receive mode and Bluetooth mode.
KCT8253C is a 3.3V supply voltage power amplifier that conserves power consumption while remain a high linear output power and excellent throughput. A DC voltage output power detector is integrated to support closed-loop power control within the system.
KCT8253C is assembled in a compact, low-profile 2.3x2.3x0.55mm 16-pin QFN package. This is an ideal RF Front-End solution for implementing 2.4GHz high performance WLAN systems supporting multiple standards.
【Specifications】
Integrated high performance 2.4GHz PA, LNA with bypass, and T/R switch
Fully-matched input and output
Integrated DC power detector
Transmit gain: 26.5dB at 3.3V and 27.0dB at 4.2V
Receive gain: 15.0dB at 3.3V and 15.0dB at 4.2V
Noise figure: 2.3dB at 3.3V&4.2V
Output power:
+19.0dBm @ DEVM=-35dB, VHT40/MCS9, 3.3V
+20.0dBm @ DEVM=-30dB, HT20/MCS7, 3.3V
Output power:
+19.5dBm @ DEVM=-35dB, VHT40/MCS9, 4.2V
+22.0dBm @ DEVM=-30dB, HT20/MCS7, 4.2V
ESD protection circuitry on all PINs
Minimal External Components Required
Small package: QFN-16L, 2.3mm x 2.3mm x 0.55mm (MSL3, 260 ℃ per JEDEC J-STD-020)
RoHS and REACH compliant
