【Introduction】

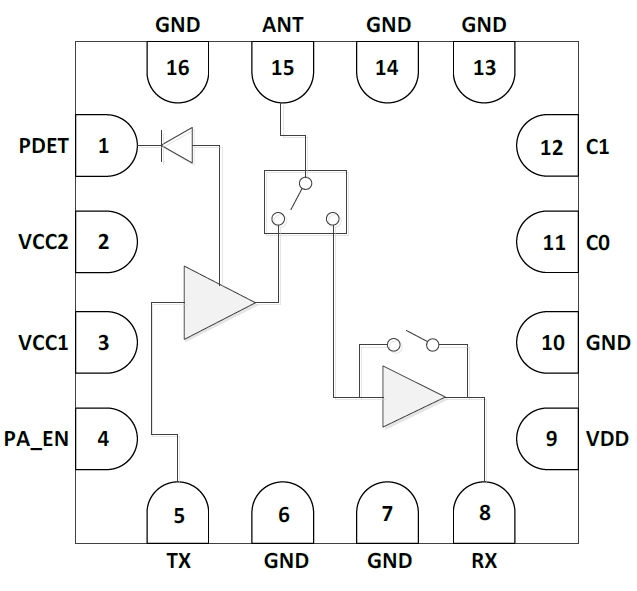

KCT8247HE-1 is a fully integrated 802.11b/g/n/ac/ax WLAN RF Front-end module (FEM) which incorporates key RF functionality. It is integrated with a high-efficiency power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network and a single-pole, double-throw (SPDT)switch all in one device.

The PA power detector and a digital enable control are also integrated.

KCT8247HE-1 is assembled in a compact, low-profile 3*3*0.57mm MIS-16L package. It is the perfect RF Front-end solution for implementing 2.4GHz high performance WLAN systems supporting multiple standards.

【Specifications】

Integrated high performance 2.4GHz PA, LNA with bypass, and T/R switch

Transmit gain: 30dB at 5V

Receive gain: 15.5dB at 5V

Noise Figure: 1.5dB at 5V

Output power:

+20dBm @ DEVM=-43dB, HE40/MCS11, 5V

+21dBm @ DEVM=-40dB, HE40/MCS11, 5V

+22.5dBm @ DEVM=-35dB, VHT40/MCS9, 5V

+23.5dBm @ DEVM=-30dB, HT20/MCS7, 5V

ESD protection circuitry on all PINs

Fully-matched input and output

Integrated Power Detector

Minimal External Components Required

Small package: MIS-16L, 3×3×0.57mm (MSL3, 260℃ per JEDEC J-STD-020)

RoHS and REACH Compliant
