【Introduction】

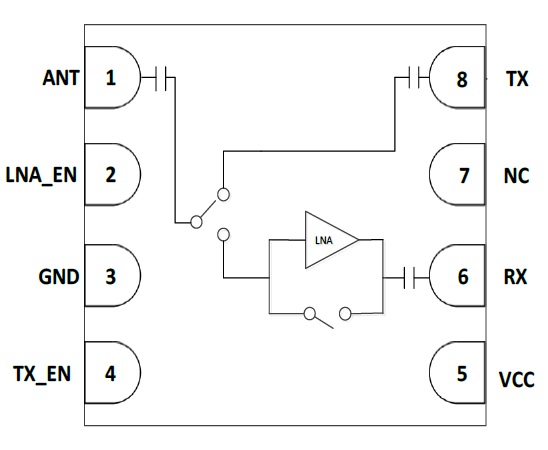

The KCT4225L is a SOI single chip SPDT switch + LNA front end module (FEM) with integrated on-chip bypass switch function.

KCT4225L normally operates at 3.3 V supply with 9.5 mA current consumption at receive mode. The control logic function is also designed to be easily operated by two control voltages among TX / RX / Bypass RF modes.

KCT4225L is assembled in a Ultra small, low-profile 1.5x1.5mm 8-pin DFN package. KCT4225L is the ideal low noise receiving RF front-end solution for implementing 2.2 - 2.5 GHz wireless application systems such as Bluetooth, WLAN, including 802.11b/g/n/ac/ax/be.

【Specifications】

Integrated 2.4GHz LNA with Bypass and SPDT Switch

LNA Gain: 15dB

Noise Figure: 1.5dB

TX-Bypass Mode with 0.4dB Insertion Loss

Input 1 dB compression point of -5dBm

Input and Output Matched to 50Ω

Supply voltage 2.6V to 5V

Optimized performance at low supply current of 9.5 mA

RX bypass mode with 6dB Insertion Loss and current consumption at 11uA for 3.3V supply voltage

Small Package: DFN 8-pin, 1.5mm x 1.5mm (MSL3, 260℃ per JEDEC J-STD-020)

ROHS and REACH Compliant
