【Introduction】

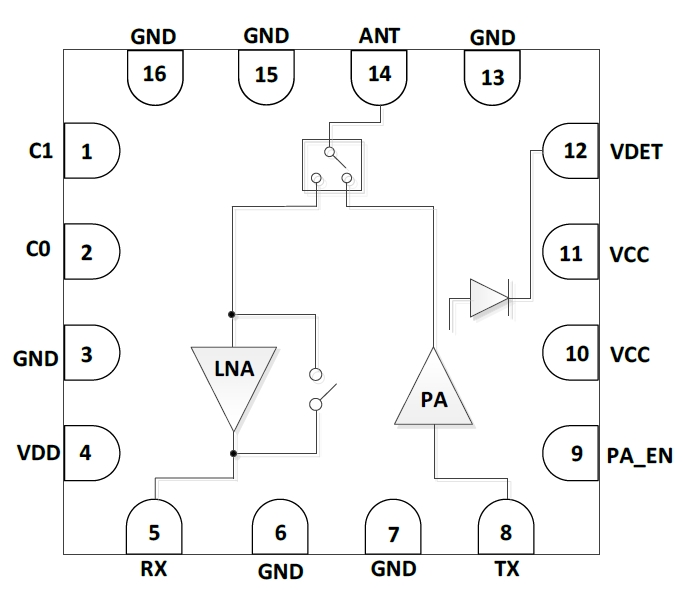

KCT8531HE is a highly integrated RF Front-End Integrated Circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac/ax WLAN systems operating in the 5.15-5.85GHz range. KCT8531HE integrates a high-efficiency highlinearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, and harmonic filters all in one device.

KCT8531HE has simple and low-voltage control logic and requires minimal external components. A power detector is also integrated to accurately monitor the output power of the PA.

KCT8531HE is assembled in a compact, low-profile 3x3x0.75mm 16-lead QFN package. KCT8531HE is the ideal RF front-end solution for implementing 5GHz high-power WLAN systems supporting multiple standards including 802.11a/n/ac/ax.

【Specifications】

Integrated 802.11ax 5GHz PA, LNA with bypass and T/R switch

Fully-matched input and output

Integrated power detector

Transmit gain: 31.0dB at 5V

Receive gain: 16.5dB at 5V

Noise Figure: 1.7dB at 5V

Output power:

+20.0dBm @ -43dB DEVM, HE160/MCS11, 5V

+21.5dBm @ -40dB DEVM, HE160/MCS11, 5V

+23.0dBm @ -35dB DEVM, VHT80/MCS9, 5V

+24.0dBm @ -30dB DEVM, HT20/MCS7, 5V

ESD protection circuitry on all PINs

Minimal external components required

Small package: QFN-16L, 3mm x 3mm x 0.75mm (MSL3, 260℃ per JEDEC J-STD-020)

RoHS and REACH Compliant
