【Introduction】

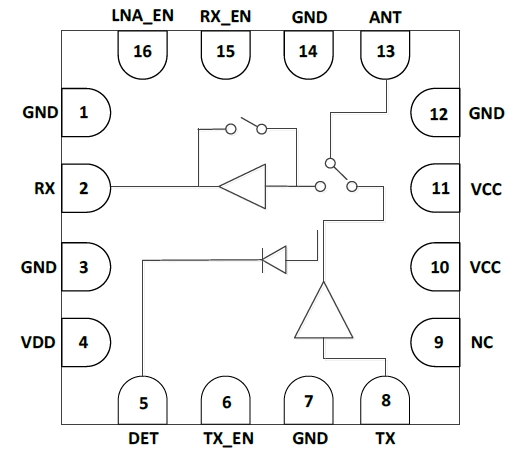

KCT8546Q is a highly integrated RF front-end integrated circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac/ax WLAN systems operating in the 5.15- 5.85GHz range. KCT8546Q integrates a high-efficiency, high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, and harmonic filters all in one device.

KCT8546Q has simple and low-voltage control logic, and requires minimal external components. A power detector is also integrated for accurately monitoring of output power from the PA.

KCT8546Q is assembled in a compact, low-profile 2.5x2.5x0.55mm 16-lead QFN package. KCT8546Q is the ideal RF front-end solution for implementing 5GHz highpower WLAN systems supporting multiple standards including 802.11a/n/ac/ax.

【Specifications】

Integrated high performance 5GHz PA, LNA with bypass and T/R switch

Fully-matched input and output

Integrated power detector

Transmit gain: 30dB at 5V

Receive gain: 16dB at 5V

Noise Figure:1.7dB at 5V

Output power:

+17.0dBm @ -43dB DEVM, HE160/MCS11, 5V

+19.5dBm @ -40dB DEVM, HE160/MCS11, 5V

+20.5dBm @ -35dB DEVM, VHT80/MCS9, 5V

+21.5dBm @ -30dB DEVM, HT20/MCS7, 5V

ESD protection circuitry on all PINs

Minimal external components required

Small package: QFN-16L, 2.5mm x 2.5mm x 0.55mm (MSL3, 260℃ per JEDEC J-STD-020)

RoHS and REACH Compliant
