【Introduction】

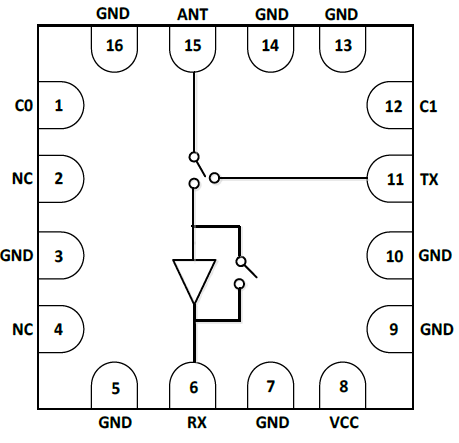

KCT4521L is an integrated Front-End module (FEM) which is designed for IEEE 802.11a/n/ac/ax WLAN systems operating in the 5.15-5.85GHz range. KCT4521L integrates a low noise amplifier (LNA) with bypass, and single-pole double-throw (SPDT) switch in one device.

KCT4521L is assembled in a compact, low-profile 2.3x2.3x0.5mm 16-pin QFN package. KCT4521L is the ideal RF front-end solution for implementing 5GHz highpower WLAN systems supporting multiple standards including 802.11a/n/ac/ax.

【Specifications】

Integrated 5GHz LNA with bypass and SPDT switch

LNA gain: 17dB

RX Bypass Mode Insertion Loss:4.5dB

Noise Figure: 1.9dB

TX Mode Insertion Loss: 0.4dB

Max Power at TX Input of 32dBm

Input and Output matched to 50Ω

Break out path between switch and LNA for optimal filter placement

Small package: QFN-16L, 2.3mm x 2.3mm x 0.5mm (MSL3, 260℃ per JEDEC J-STD-020)

RoHS and REACH Compliant
