KCT6500H
【Introduction】

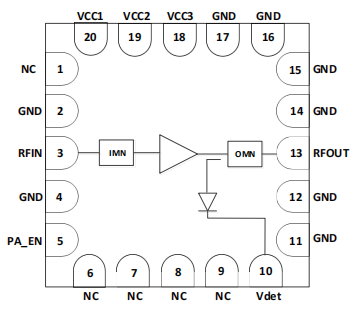

KCT6500H is a RF power amplifier integrated circuit incorporates key RF functionality needed for IEEE 802.11a/n WLAN systems operating in the 4.9~5.945GHz range. It integrates a high-efficiency, high-linearity power amplifier (PA), the associated matching network and harmonic filters all in one
device.
KCT6500H is a 5V nominal supply voltage power amplifier that conserves power consumption while maintaining the highest linear output power and excellent throughput. For IEEE802.11a/n Wireless LAN applications, the device delivers 29.5dBm of linear output power at 5V. A DC voltage output power detector is integrated to support closed-loop power control within the system.
KCT6500H is assembled in a compact, low-profile 4x4x0.765mm 20-lead LGA package, which is an ideal RF power amplifier for implementing 5GHz high power Wireless LAN systems supporting multiple standards including 802.11a/n.
【Specifications】
Integrated 5GHz High output power amplifier
Fully-matched input and output
Integrated DC power detector
Operating Frequency: 5.15~5.85GHz
High Transmit gain: 35dB at 5V
Output power:
+26.5dBm @ -30dB DEVM, 802.11a, 54Mbps, 64 QAM, 5V
+30.0dBm @ 802.11n, HT20/MCS0, Mask Compliance, 5V
ESD protection circuitry on all PINs
Minimal external components required
Small package: LGA-20L, 4mm x 4mm x 0.765mm (MSL3, 260℃ per JEDEC J-STD-020)
RoHS and REACH Compliant
