【Introduction】

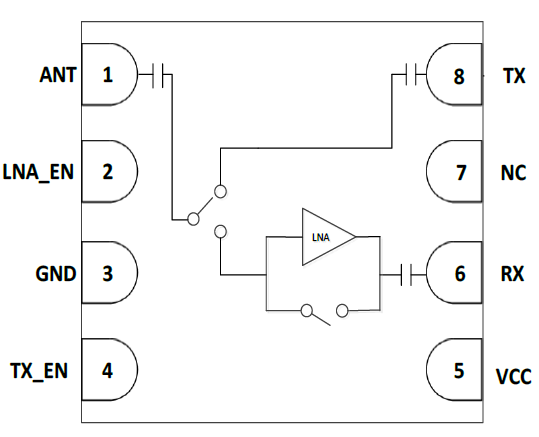

The KCT4525L is a SOI single chip SPDT switch + LNA front end module (FEM) with integrated on-chip bypass switch function.

KCT4525L normally operates at 3.3 V supply with 10mA current consumption at receive mode. The control logic function is also designed to be easily operated by two control voltages among TX / RX / Bypass RF modes.

KCT4525L is assembled in a Ultra small, low-profile 1.5x1.5mm 8-pin DFN package. KCT4525L is the ideal low noise receiving RF front-end solution for implementing 5GHz WLAN systems supporting multiple standards including 802.11a/n/ac/ax/be.

【Specifications】

Integrated 5GHz LNA with Bypass and SPDT Switch

LNA Gain: 15dB

Noise Figure:

1.7dB at 5150~5850MHz

1.8dB at 5945~7125MHz

TX-Bypass Mode with 0.8dB Insertion Loss at 5150~5850MHz

TX-Bypass Mode with 0.65dB Insertion Loss at 5945~7125MHz

Rx LNA mode with input 1 dB compression point of -5dBm

Input and Output Matched to 50Ω

Supply voltage 2.6V to 5V

RX bypass mode with current consumption at 14uA for 3.3V supply voltage

Small Package: DFN 8-pin, 1.5mm x 1.5mm (MSL3, 260℃ per JEDEC J-STD-020)
