【Introduction】

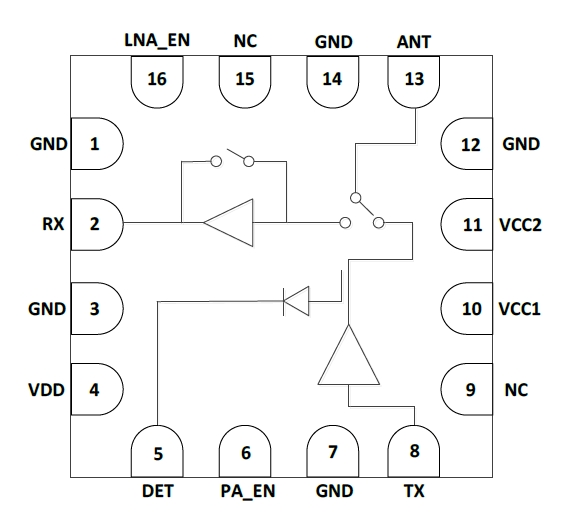

KCT8525D-2 is a highly integrated RF Front-End Integrated Circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac WLAN systems operating in the 5.15-5.85GHz range. KCT8525D-2 integrates a high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, and harmonic filters all in one device.

KCT8525D-2 has simple and low-voltage control logic and requires minimal external components. A power detector is also integrated to accurately monitor the output power of the PA.

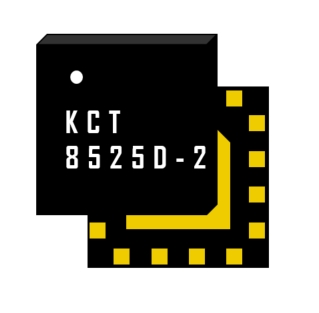

KCT8525D-2 is assembled in a compact, low-profile 2.5x2.5x0.55mm 16-lead QFN package. KCT8525D-2 is the ideal RF front-end solution for implementing 5GHz high-power WLAN systems supporting multiple standards including 802.11a/n/ac.

【Specifications】

Integrated 802.11ac 5GHz PA, LNA with bypass and T/R switch

Fully-matched input and output

Integrated power detector

Transmit gain: 31.5dB at 5V

Receive gain: 15.0dB at 5V

Noise Figure: 2.1dB at 5V

Output power:

+22.5dBm @ -35dB DEVM, VHT80/MCS9, 5V

+23.5dBm @ -30dB DEVM, VHT20/MCS7, 5V

ESD protection circuitry on all PINs

Minimal external components required

Small package: QFN-16L 2.5mm x 2.5mm x 0.55mm (MSL3, 260 ℃ per JEDEC J-STD-020)

RoHS and REACH Compliant
