【Introduction】

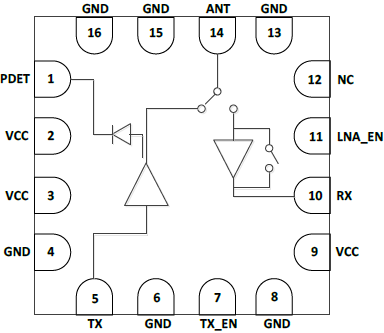

KCT8537C is a highly integrated RF Front-End Integrated Circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac WLAN systems operating in the 5.15-5.85GHz range. KCT8537C integrates a high-efficiency high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, LO rejection, and harmonic filters all in one device.

KCT8537C has simple and low-voltage control logic, and requires minimal external components. A power detector is also integrated for accurate monitoring of output power from the PA.

KCT8537C is assembled in a compact, low-profile 2.3x2.3x0.55mm 16-lead QFN package. KCT8537C is the ideal RF front-end solution for implementing 5GHz WLAN systems supporting multiple standards including 802.11a/n/ac.

【Specifications】

Integrated high performance 5GHz PA,LNA with bypass and T/R switch

Fully-matched input and output

Integrated power detector

Transmit gain : 29dB

Receive gain: 13dB

Output power: +21dBm @ 1.8% DEVM, VHT80/MCS9, 5V

Output power: +22dBm @ 3% DEVM, HT40/MCS7, 5V

ESD protection circuitry on all PINs

DC decoupled RF ports

Minimal external components required

Small package: QFN16 2.3mm x 2.3mm x0.55mm (MSL3, 260 ℃ per JEDEC J-STD-020)

ROHS and REACH Compliant
