【Introduction】

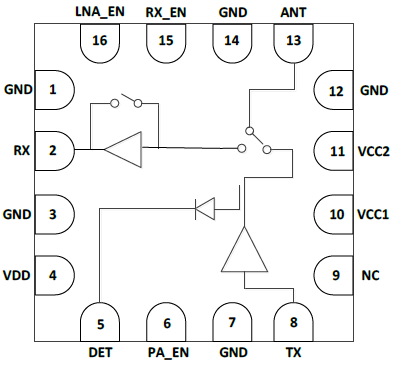

KCT8534D is a highly integrated RF Front-End Integrated Circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac WLAN systems operating in the 5.15-5.85GHz range. KCT8534D integrates a high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, and harmonic filters all in one device.

KCT8534D has simple and low-voltage control logic, and requires minimal external components. A power detector is also integrated for accurate monitoring of output power from the PA.

KCT8534D is assembled in a compact, low-profile 2.5x2.5x0.55mm 16-lead QFN package. KCT8534D is the ideal RF front-end solution for implementing 5GHz high-power WLAN systems supporting multiple standards including 802.11a/n/ac.

【Specifications】

Integrated high performance 5GHz PA, LNA with bypass and T/R switch

Fully-matched input and output

Integrated power detector

Transmit gain: 30.5dB at 3.3V

Receive gain: 14.0dB at 3.3V

Noise Figure: 3.2dB at 3.3V

Output power:

+18.0dBm @ 1.8% DEVM, VHT80/MCS9, 3.3V

+19.5dBm @ 3% DEVM, HT20/MCS7, 3.3V

ESD protection circuitry on all PINs

Minimal external components required

Small package: QFN-16L 2.5mm x 2.5mm x 0.55mm (MSL3, 260℃ per JEDEC J-STD-020)

RoHS and REACH Compliant
